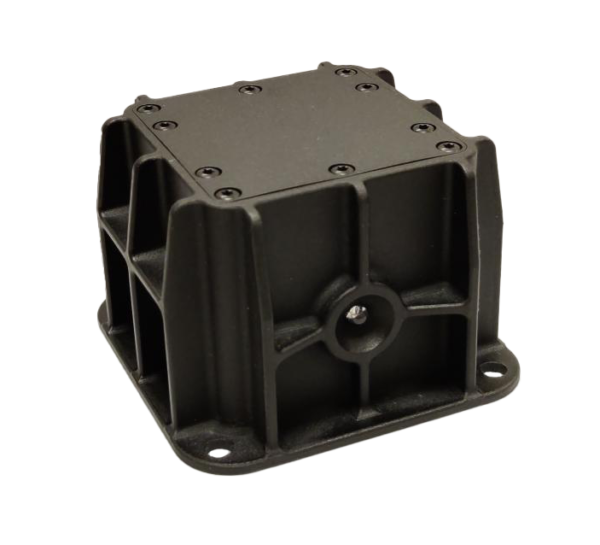

RDZ2201CM
8000 kr
Configurable, industrial level and measurement sensor
RDZ2201CM is a 60GHz radar sensor suited for distance measurement, level detection, or as a motion sensor. All sensors in the RDZ2201 series are rugged and can provide measurements in cumbersome environments with high-temperature variations. Along with the sensor is an integrated web interface included, where the user can configure how the sensor should operate. RDZ2201CM can measure up to 25 meters with an accuracy of 1.2 centimeters at an update rate of 45Hz. It has an analog output of 4-20mA, which correspond to the distance between the target object and the sensor, in a configurable range of interest.
Overview
- Working range: 0.3 – 25m
- Opening angle range: +/- 4 °
- Operating temperature range: -20 … +65 °C
- Detects objects in specific zones
- Digital output to external (PLC) systems
- Suitable for distance measurements of all kinds
- Level measurements
Downloads
Additional information
| Weight | 0,5 kg |
|---|---|
| Dimensions | 165 × 175 × 110 cm |
| Measurement Range | 0.3 – 25 m |
| Measuring Accuracy | 0.0125 m |
| Response Time Detection | 21.86ms |
| Update Frequency | 45 Hz |
| Interface | 2.4 GHz Wireless LAN |
| Output | Analog 4-20 mA 4-wire |
| Connection Type | M12 4-pin A-code |
| Operating Temperature Range | -20 … +65 °C |
| Resolution between targets | 0.1 m |
